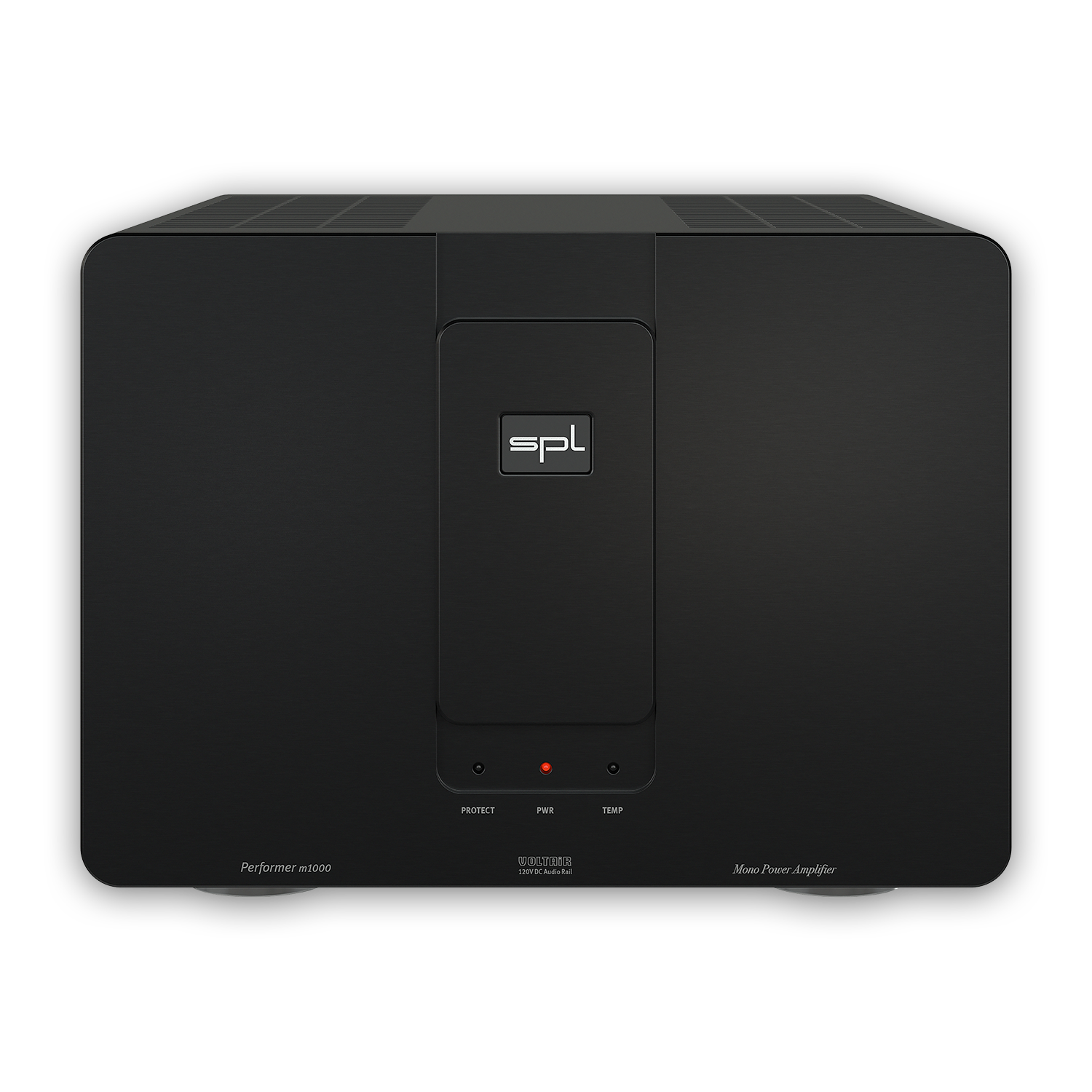

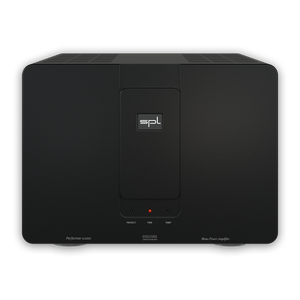

SPL Performer M1000 - Mono Power Amplifier
With a power amplification of 750 W (4 Ω) [1000 W (2 Ω); 420 W (8 Ω)], this completely analog amplifier easily controls any loudspeaker. Thanks to the VOLTAiR technology the performance of the m1000 is detail-rich, vivid, honest and plain simply beautiful.
SPL Performer M1000 Mono Power Amplifier
In addition to the choice of the basic color black, red or silver, there are three more options for each to customize the Performer m1000 to individual design preferences with the black, red and silver decorative panels included in the scope of delivery. The decorative panels adhere with the help of a strong neodymium magnet. No tools are required to exchange them.
The Performer m1000 has a protection circuit against DC voltage and against overheating.
If direct current (DC) is detected, the output stage switches off automatically and the Protect LED lights up red. To protect the m1000 against the unlikely event of overheating, a temperature sensor at the heatsinks continously monitors the temperature of the device. The TEMP LED lights up yellow when the Performer m1000 is getting too hot.
As a result of this the output stage is switched off and the fans run on high-speed until the device has cooled down.
Trim to fit
With reference to the Performer m1000, “fit” means adapted.
You can adapt the input sensitivity in 0.5 dB steps from 0 dB to -5.5 dB. In contrast to a panorama potentiometer in a preamplifier, this trim switch is the more audiophile solution.
In addition, the difference in loudness of loudspeakers can be elegantly compensated in bi-amping mode.
Power to the speakers
The loudspeaker binding posts can accommodate banana plugs as well as a stranded wire with a diameter of up to 4 mm.
Thus, any common type of speaker cable and in bi-wiring mode even both connection types can be used together.
However, we do not recommend connecting a speaker with less than 2 ohms impedance.
A class of its own
Conventional solid-state power amplifiers tend to operate in a critical range of the built-in components – this results in unpleasant harmonical artifacts. Tube power amplifiers also distort at their limit but their characteristical behaviour softens this roughness and harshness.
Non the less this is a falsified representation of the sound image. Thanks to VOLTAiR Technology, the Performer m1000 can process much higher levels without even coming near to a critical range. All components constantly operate in the optimal range. The result is a very pleasant, natural and relaxed sound experience. Enjoy your music in every detail and without any listening fatigue.
Full power
The Performer m1000 features individual amplification stages for voltage and power amplification, which ensures a perfect operating of the class-AB amplifier circuit.
Thanks to each stage’s own negative feedback path, it is ruled out that feedbacks from the loudspeaker are interacting with the input stage – this way the SPL VOLTAiR Technology can play out its full performance.
Keep cool
Inside the Performer m1000, six fans usually do nothing at all, because 90 % of the heat is passively dissipated via massive heat sinks. Should it nevertheless become really loud for a really long time, the processor-controlled fans remain virtually inaudible at only 19 dB (A). During power-up, the fans of the Performer m1000 briefly rotate at a higher speed to remove dust of themselves and surrounding components.
