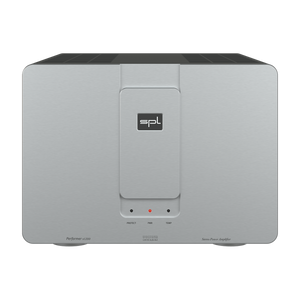

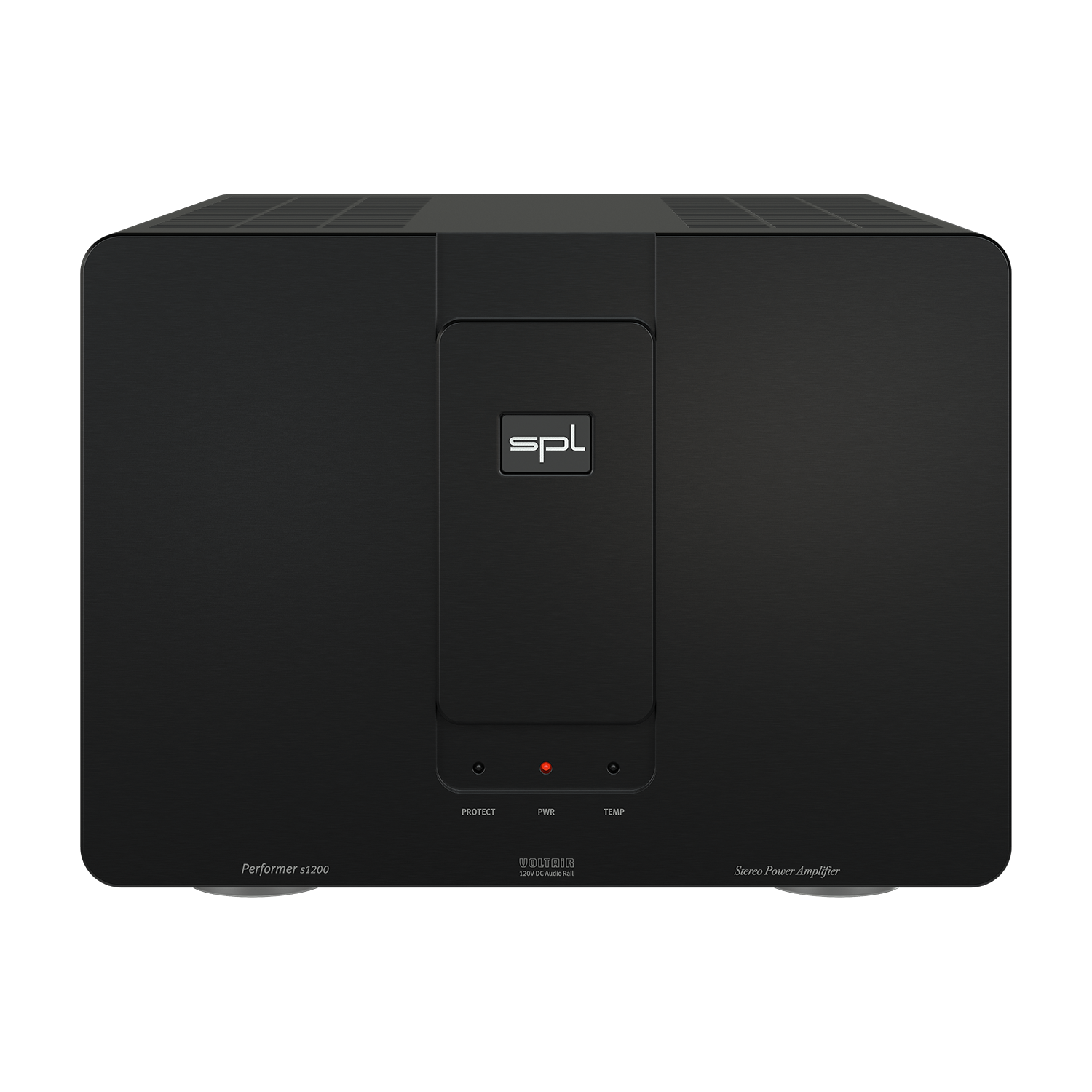

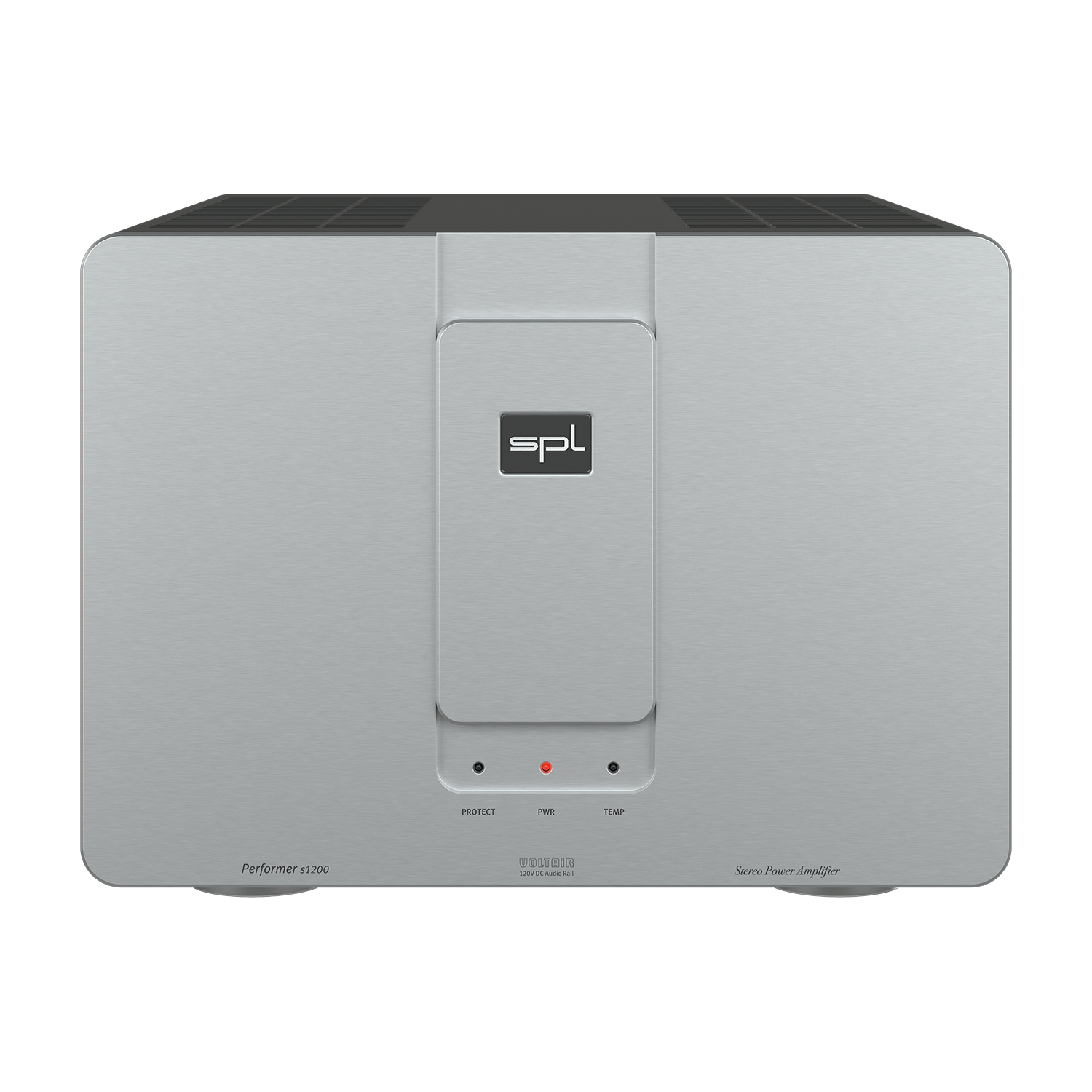

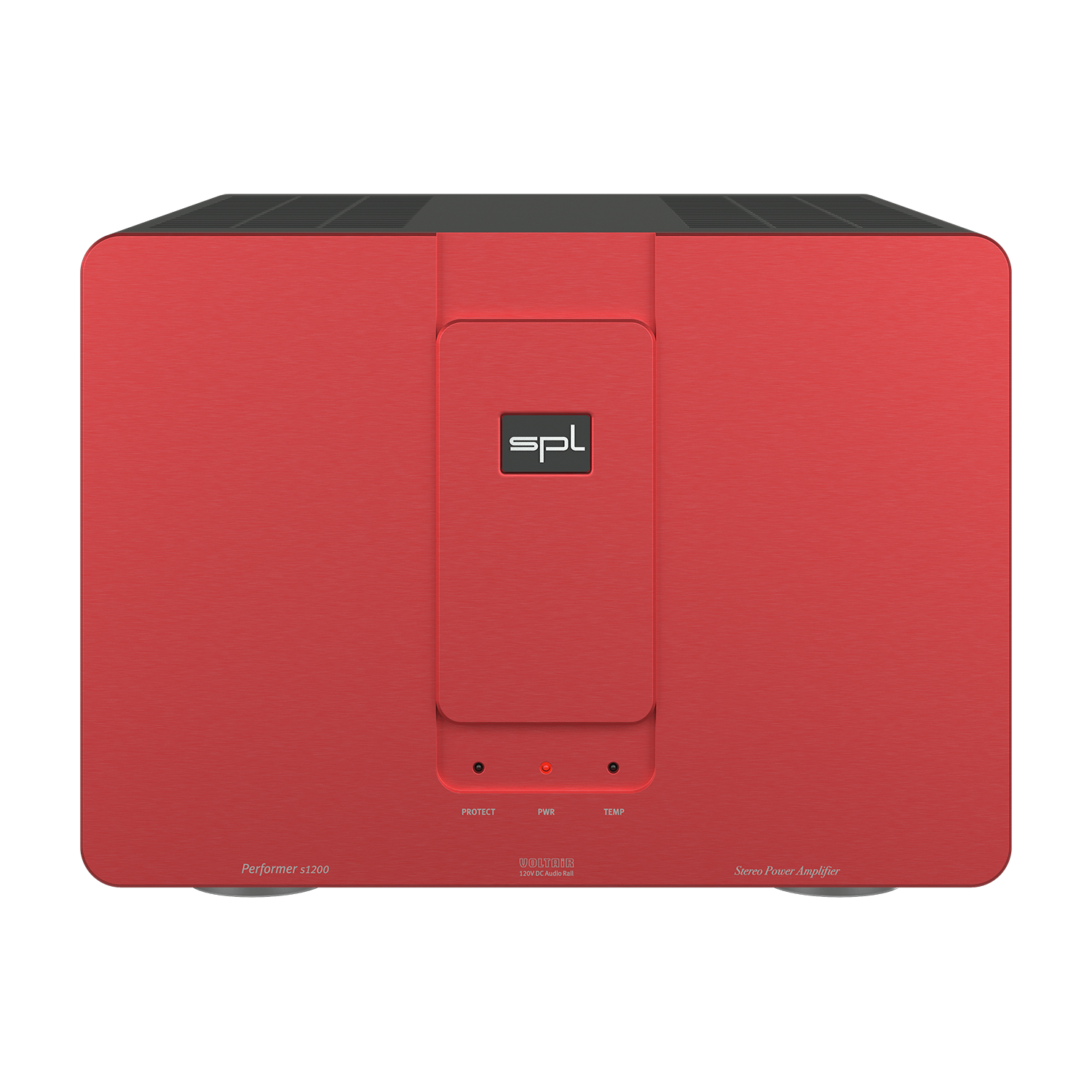

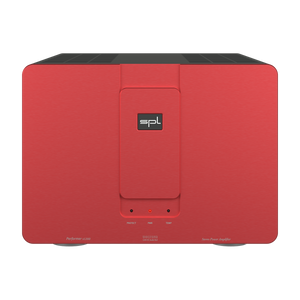

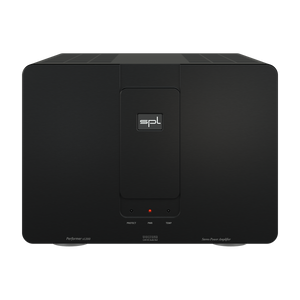

SPL Performer S1200 - Power Amplifier

$10,999.00

Tax included. Shipping calculated at checkout.

Color

Black Silver Red

This impressive stereo power amplifier leads even the most demanding speakers to soundscapes beyond your expectations. With a power amplification of 2 x 520 W (4 Ω) or 2 x 300 W (8 Ω)], this completely analogue amplifier easily controls any loudspeaker.

Thanks to the VOLTAiR technology the performance of the s1200 is detail-rich, vivid, honest and plain simply beautiful.

SPL Performer S1200 Power Amplifier

Conventional solid-state power amplifiers tend to operate in a critical range of the built-in components – this results in unpleasant harmonical artifacts. Tube power amplifiers also distort at their limit but their characteristical behaviour softens this roughness and harshness.

Non the less this is a falsified representation of the sound image. Thanks to VOLTAiR Technology, the Performer s1200 can process much higher levels without even coming near to a critical range. All components constantly operate in the optimal range. The result is a very pleasant, natural and relaxed sound experience. Enjoy your music in every detail and without any listening fatigue.

FULL POWER

The Performer s1200 features individual amplification stages for voltage and power amplification, which ensures a perfect operating of the class-AB amplifier circuit.

Thanks to each stage’s own negative feedback path, it is ruled out that feedback from the loudspeaker are interacting with the input stage – this way the SPL VOLTAiR Technology can play out its full performance.

KEEP COOL

Inside the Performer s1200, six fans usually do nothing at all, because 90 % of the heat is passively dissipated via massive heat sinks. Should it nevertheless become really loud for a really long time, the processor-controlled fans remain virtually inaudible at only 19 dB (A). During power-up, the fans of the Performer s1200 briefly rotate at a higher speed to remove dust of themselves and surrounding components.

Specifications

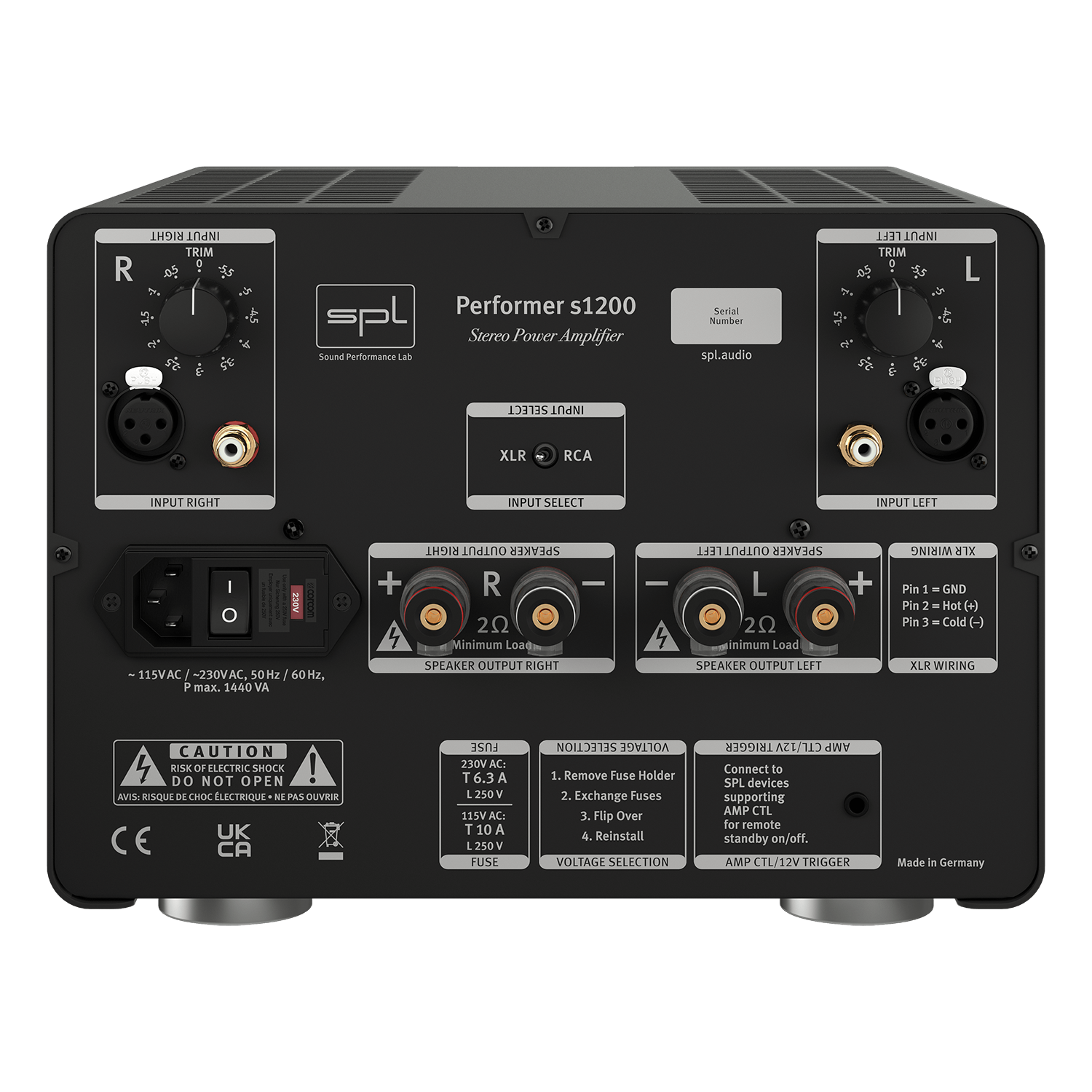

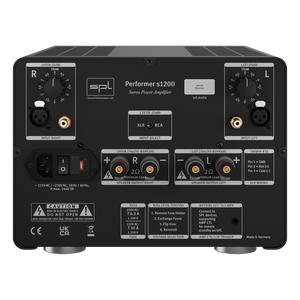

Analog Inputs: XLR (balanced), RCA (unbalanced)

Input impedance

20 kΩ

Input trimming

0 dB to -5.5 dB in 0.5 dB steps

Input sensitivity

10,5 dBu

Loudspeaker Outputs: Binding posts with 4 mm ø cable hole (screwable) and banana plug

Output power (RMS, 2 Ω)

2 x 550 W

Harmonic distortion (1 kHz, 2 Ω)

< 0,09 %

Output power (RMS, 4 Ω)

2 x 520 W

Harmonic distortion (1 kHz, 4 Ω)

< 0,09 %

Output power (RMS, 8 Ω)

2 x 300 W

Harmonic distortion (1 kHz, 8 Ω)

< 0,04 %

Output voltage (Peak-to-Peak)

160 V

Output voltage (RMS)

54,6 V

Output impedance (20 Hz – 20 kHz)

< 0,031 Ω

Frequency range (-3dB)

10 Hz – 80 kHz

Amplification gain

26 dB

Damping factor (1 kHz, 8 Ω)

> 290

Noise (A-weighted)

-123 dB

Internal Linear Power Supply with Shielded Toroidal Transformer

Toroidal transformer

1440 VA

Operating voltage (Input stage)

+/- 60 V

Operating voltage (Power stage)

+/- 80 V

Operating voltage for relays, LEDs, AMP CTL

+ 12 V

Mains Power Supply

Mains voltage (selectable, see fuse chamber)

230 V AC / 50 Hz; 115 V AC / 60 Hz

Fuse 230 V

T 6.3 A

Fuse 115 V

T 10 A

Power consumption

max. 1440 VA

Idle power consumption

50 W

Stand-by power consumption

< 0.3 W

Dimensions & Weight

W x H x D (width x height incl. feet x depth)

276 x 205 x 345 mm

10.94 x 8.07 x 13.6 inch

Unit weight

25.1 kg

55.3 lbs

Shipping weight

29.1 kg
