Since 1973, The Reference has continually set the benchmark for loudspeakers and sound reproduction. Pioneering the use of digital technologies to achieve the highest audio accuracy, every pair can be matched within 0.5dB to the laboratory-maintained reference standard.
Since the first Reference speaker, KEF engineers have continued to innovate using what is possible with The Reference. Ground-breaking in its first incarnation, each subsequent iteration of The Reference has added to the world’s knowledge of the science of acoustics.
Specifications

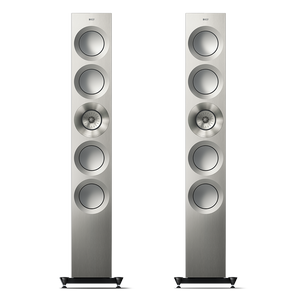

Model REFERENCE 5 Meta
Design Three-way bass reflex

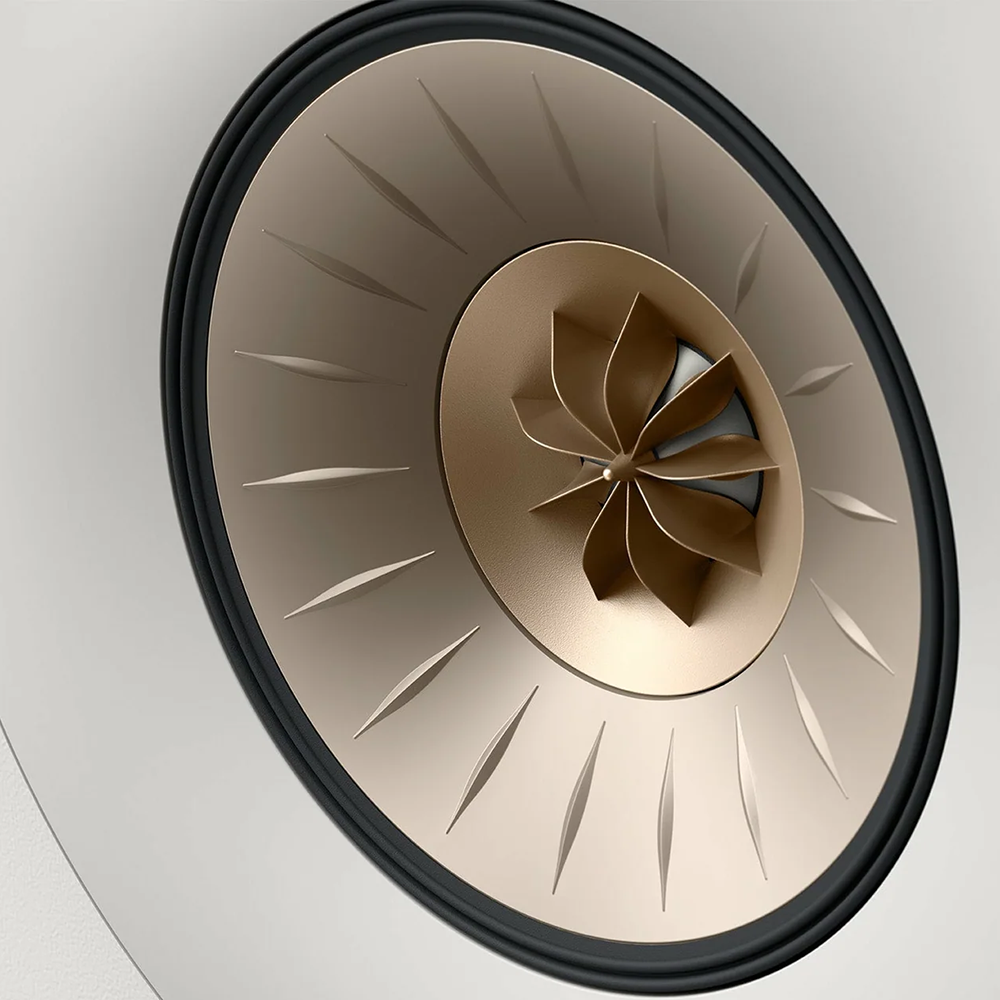

Drive units Uni-Q driver array:
HF: 25 mm (1 in.) aluminium dome with MAT
MF: 125 mm (5 in.) aluminium cone
Bass units:
LF: 4 x 165 mm (6.5 in.) aluminium cone
Frequency range free field (-6dB) Short port: 35 Hz - 45 kHz. Long port: 32 Hz - 45 kHz
Frequency range typical in room bass response (-6dB) 25 Hz
Frequency response (±3dB) 40 Hz – 35 kHz
Crossover frequency 450 Hz, 2.1 kHz
Amplifier requirements 50 - 400 W
Sensitivity (2.83V/ 1m) 88 dB
Harmonic distortion 2nd & 3rd harmonics (90dB, 1m)
<0.5% 40 Hz – 100 kHz
<0.2% 200 Hz – 2 kHz
<0.1% 2 kHz - 20 kHz
Maximum output (peak sound pressure level at 1m with pink noise) 116 dB
Impedance 4 (min. 3.2 )
Weight 60.2 kg (132.7 lbs.)
Dimensions (H x W x D) (with grille and terminal) 1350 x 205 x 462 mm (53.1 x 8.1 x 18.2 in.)
Dimensions (H x W x D) (with grille, terminal & plinth) 1402 x 323 x 467 mm (55.2 x 12.7 x 18.4 in.)

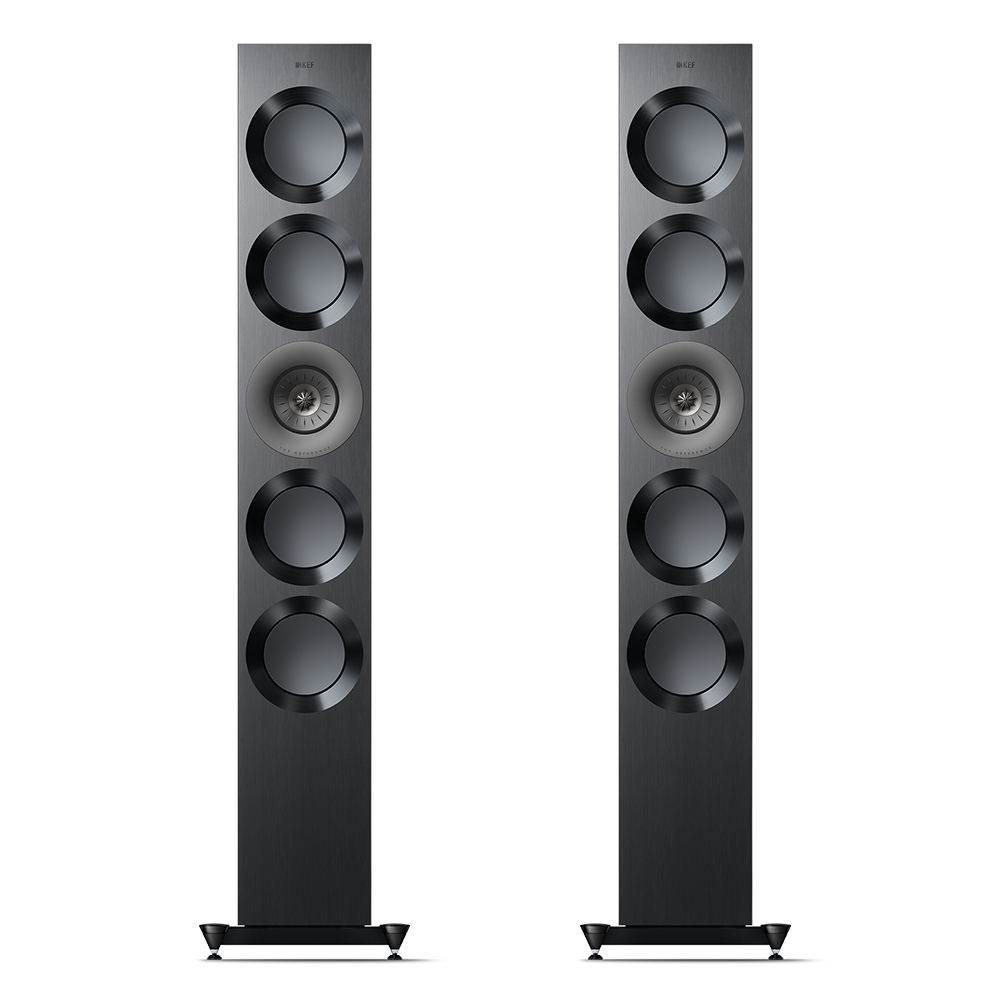

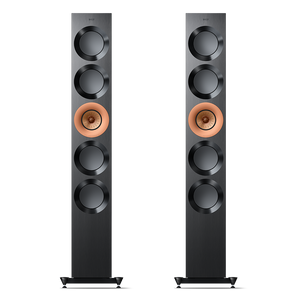

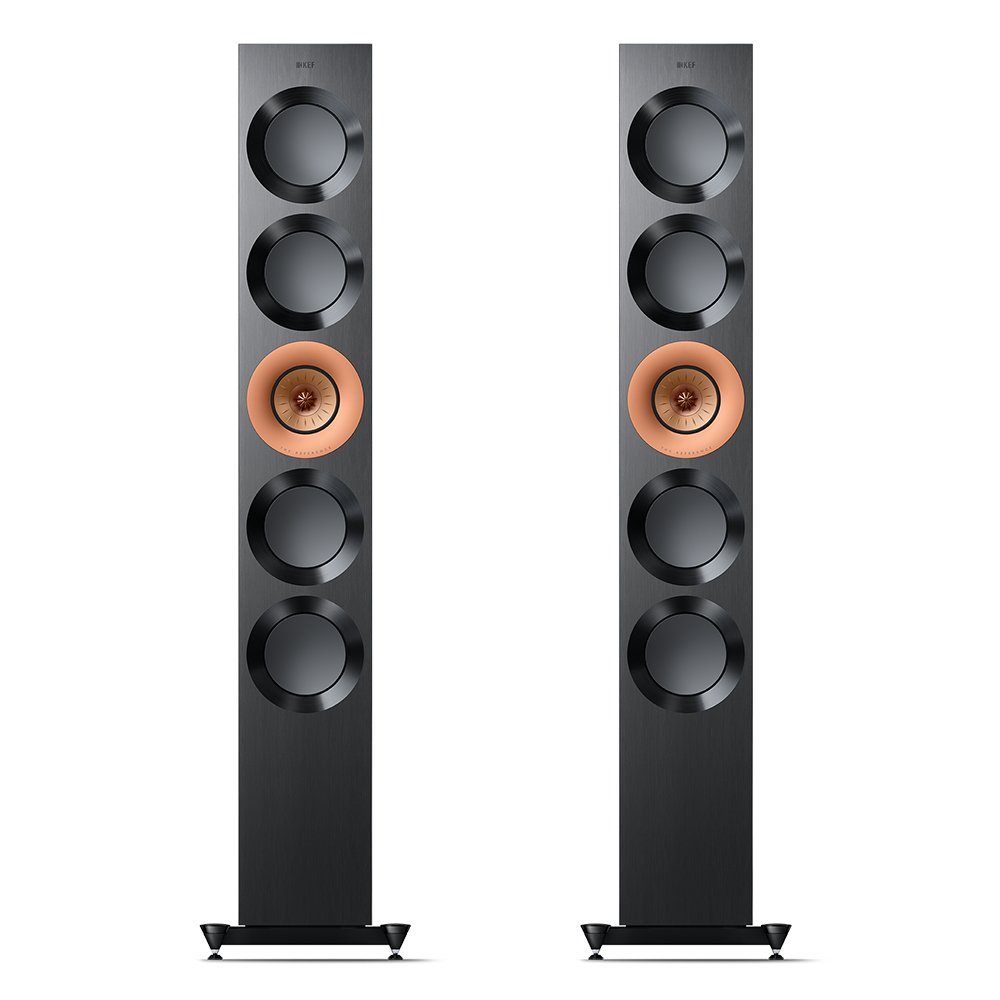

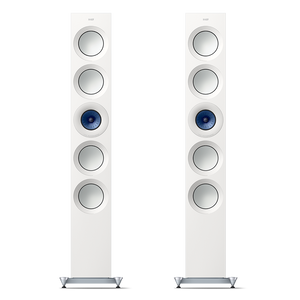

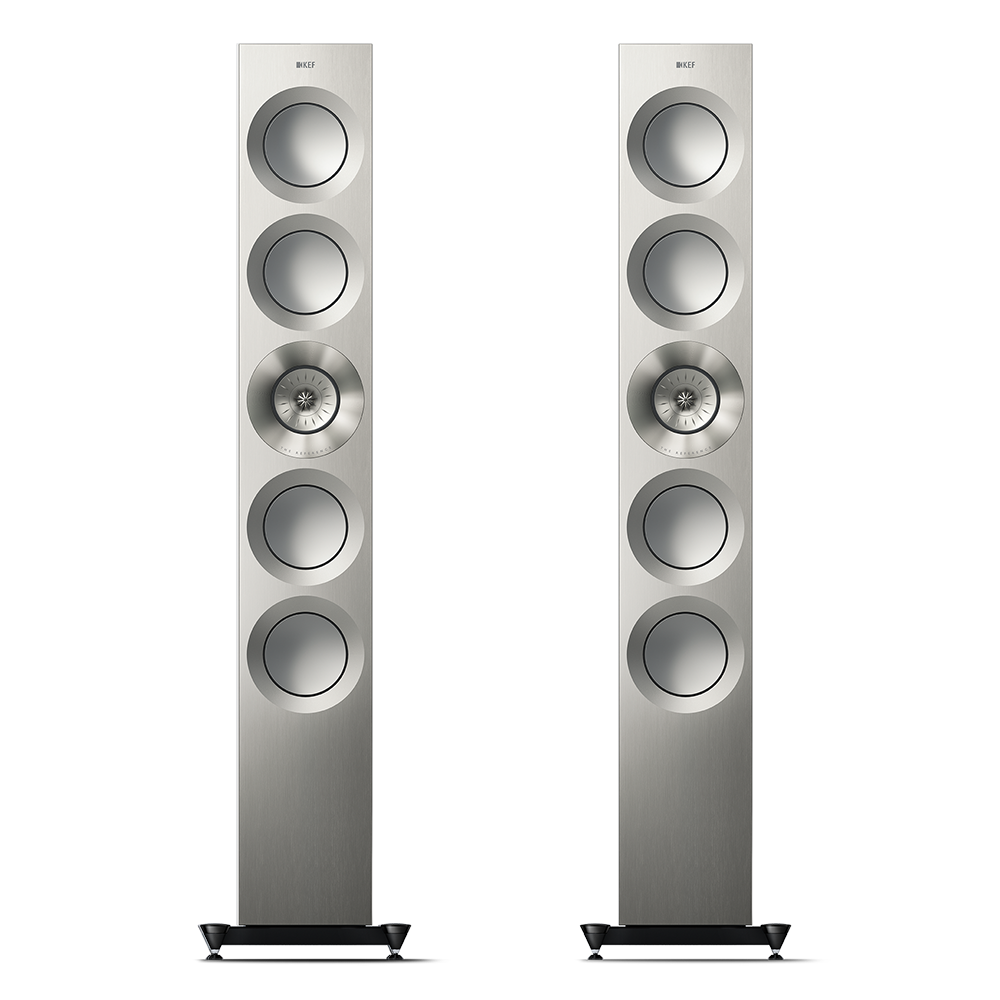

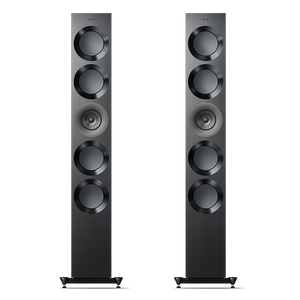

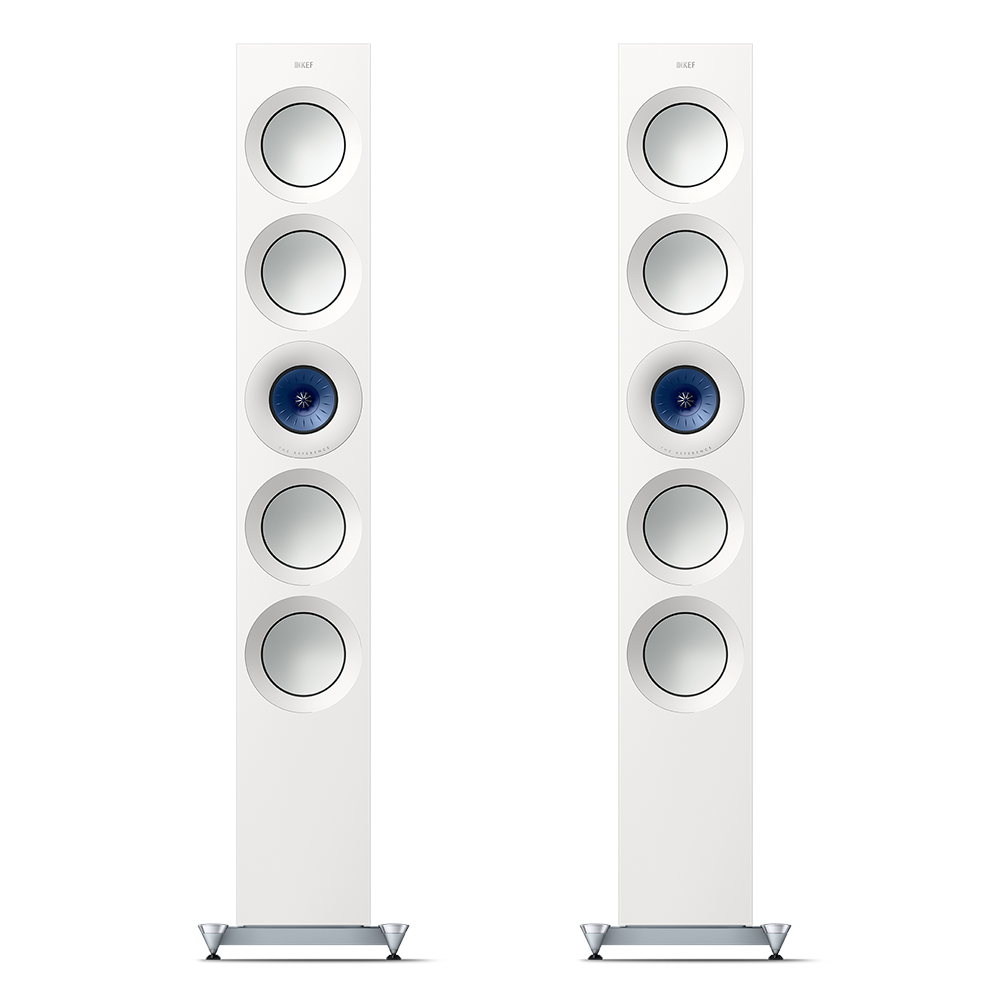

Standard finishes Satin Walnut/Silver, High-Gloss White/Blue, High-Gloss White/Champagne, High-Gloss Black/Grey, High-Gloss Black/Copper
