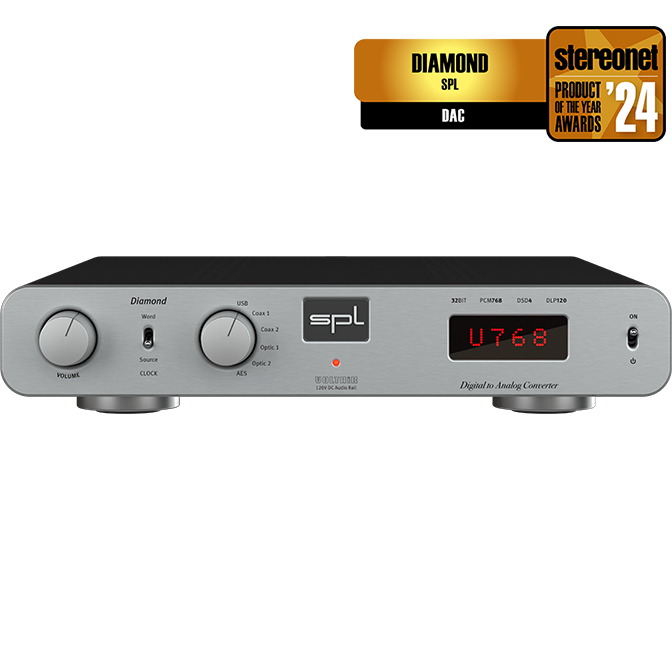

Douglas HiFi SPL DIAMOND Silver Front - Stereonet Award Product of the Year 2024 - Osborne Park - Perth - Western Australia

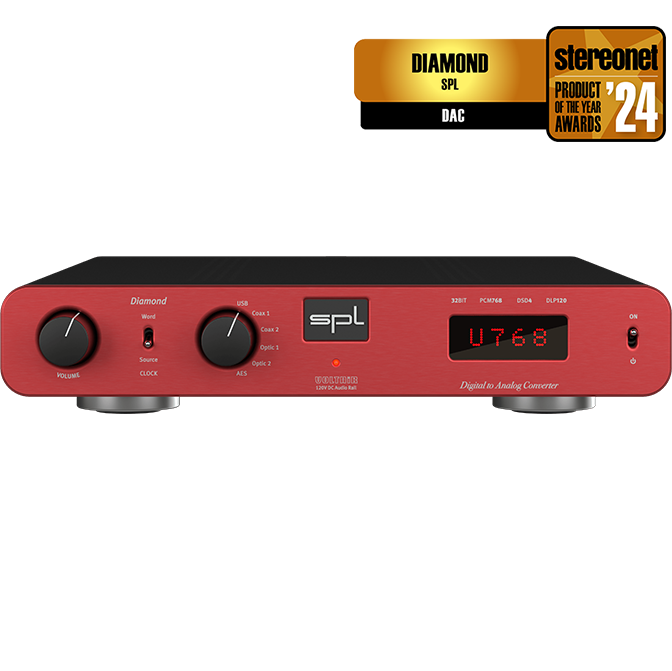

Douglas HiFi SPL DIAMOND  Red - Stereonet Award Product of the Year 2024 - Osborne Park - Perth - Western Australia

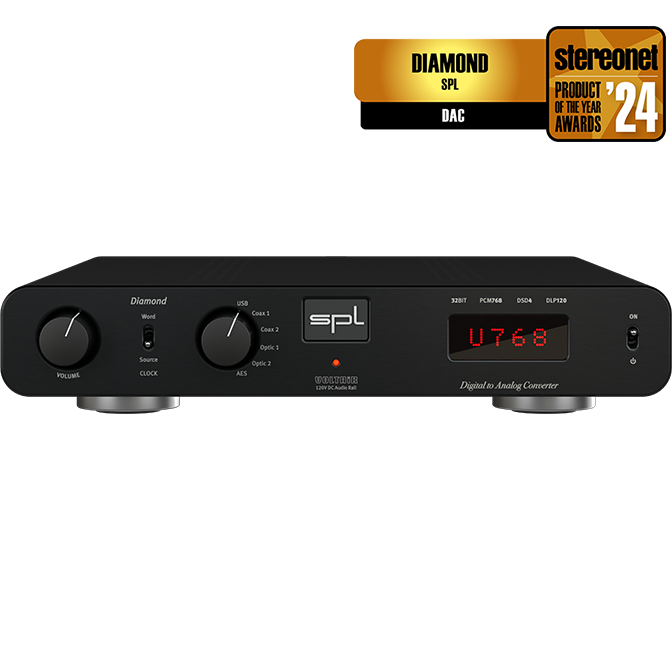

Douglas HiFi SPL DIAMOND BLACK Front - Stereonet Award Product of the Year 2024 - Osborne Park - Perth - Western Australia

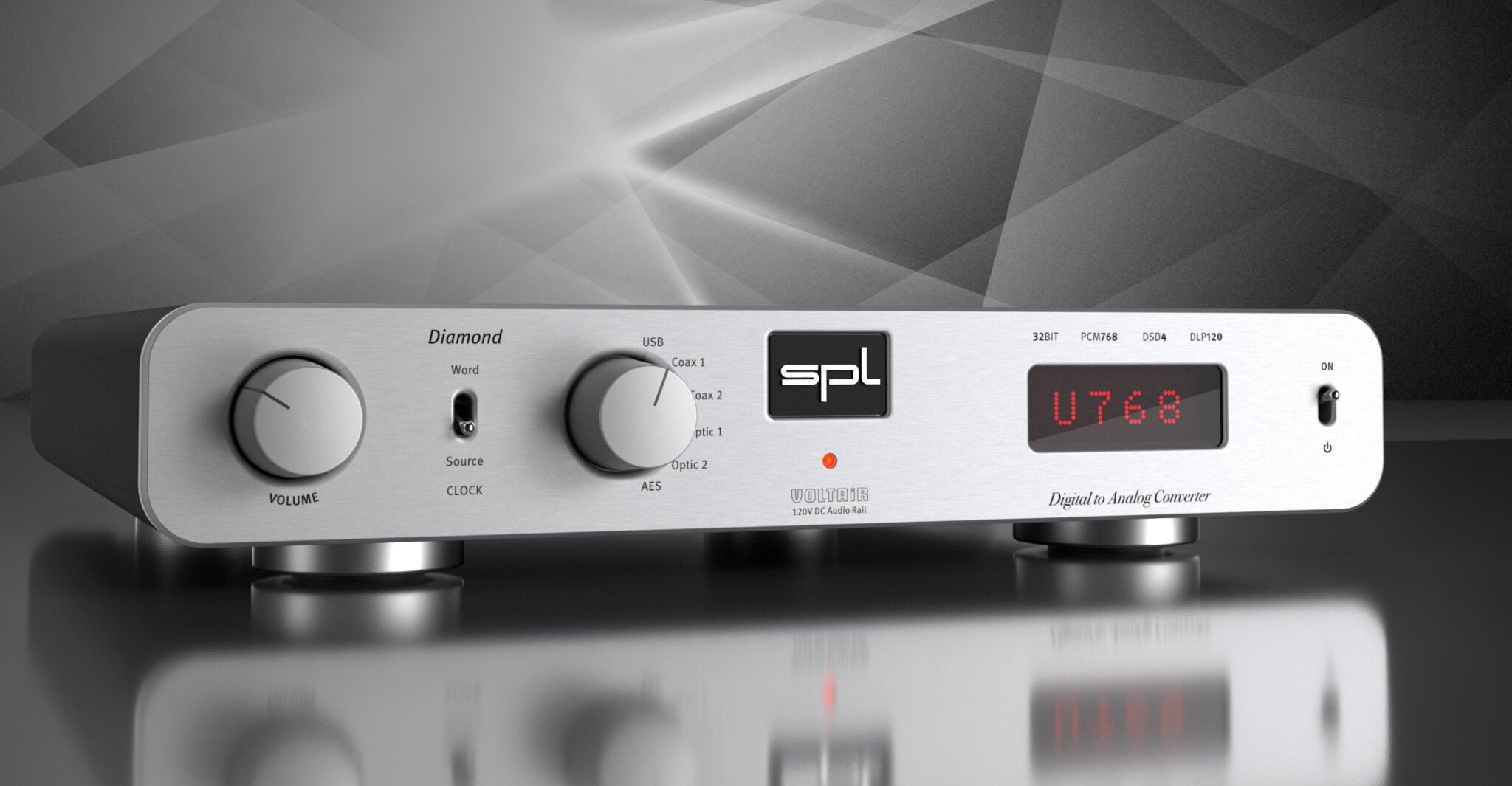

Douglas HiFi SPL DIAMOND Lifestyle Silver Front - Osborne Park - Perth - Western Australia

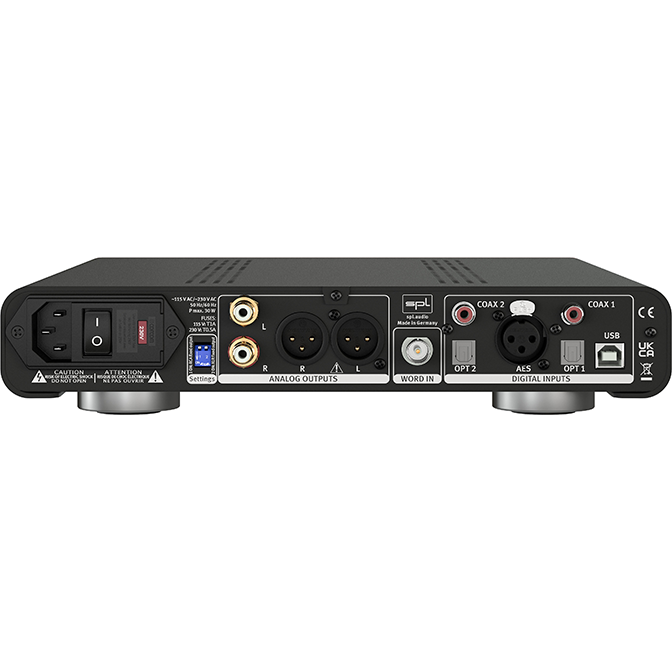

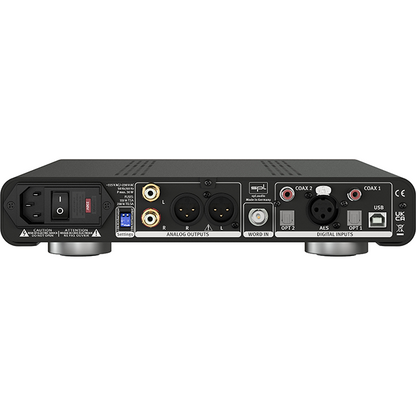

Douglas HiFi SPL DIAMOND BLACK Rear View Showing Connections on the Back - Osborne Park - Perth - Western Australia

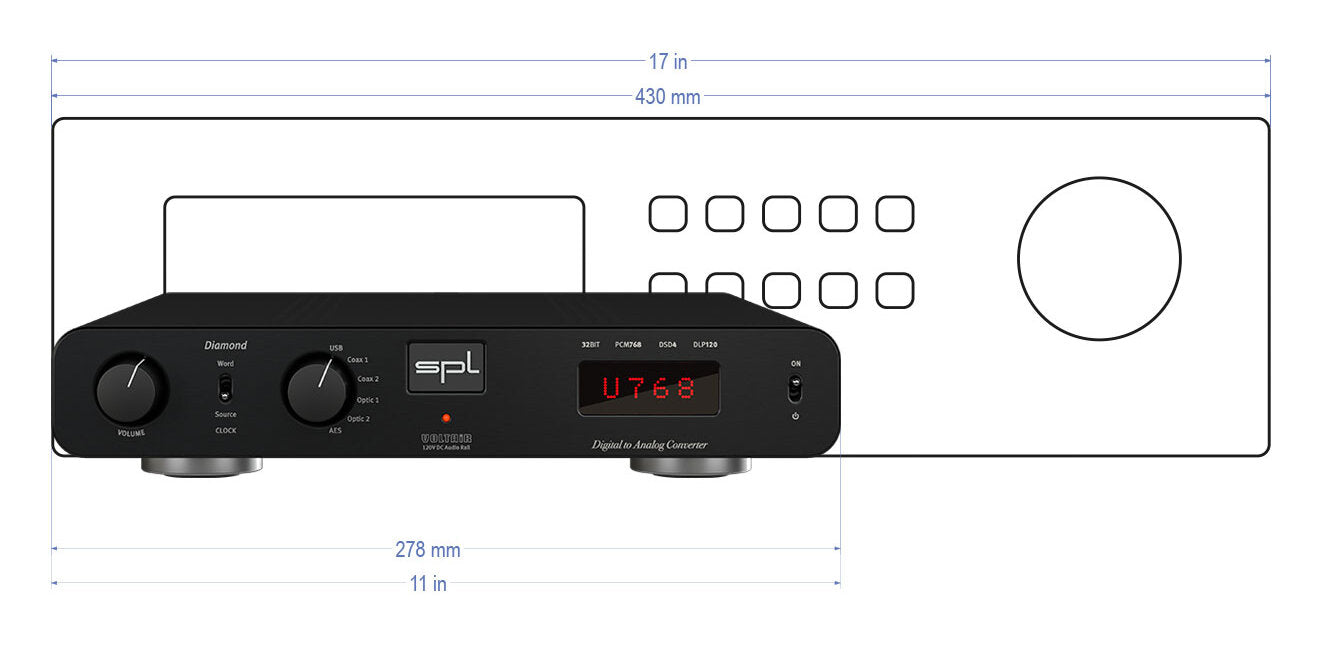

Douglas HiFi SPL DIAMOND BLACK Front Dimensions and Relative Size - Osborne Park - Perth - Western Australia

SPL Diamond Digital to Analog Converter - Award Winning DAC

Regular price $4,299.00
Unit price  per
Tax included. Shipping calculated at checkout.

Introducing the Award Winning SPL Diamond DAC : Elevate Your Digital Music Experience!

SPL Diamond Premium DAC with VOLTAiR technology

Experience unparalleled sound quality with the SPL Diamond Digital to Analog Converter. Winner of the prestigious Stereonet award, this professional-grade DAC features detailed soundstage, dynamics, and bass control. Elevate your listening experience with the exclusive brand trusted by audiophiles worldwide.

Immerse yourself in the epitome of digital audio refinement with the SPL Diamond DAC. Tailored for enthusiasts who indulge in digital sources, the Diamond offers unparalleled connectivity for up to six digital devices, alongside compatibility with an external word clock.

Seamless Connectivity, Limitless Possibilities: Connectivity is key, and the Diamond DAC ensures you're covered. With ports for six digital sources and external word clock support, it's your gateway to a world of digital audio perfection.

Powered by Superior VOLTAiR Technology: Experience audio at its finest, driven by the superior VOLTAiR technology. The Diamond DAC is not just a converter; it's a technological marvel, delivering pristine sound with unparalleled precision.

Premium DAC with DLP120: Elevate your audio with the premium DAC featuring the unequalled DLP120. This powerhouse combination sets the Diamond apart, ensuring every note is delivered with breathtaking clarity and depth.

Analog Volume Control, Infinite Resolutions: Fine-tune your audio experience with the analog volume control, allowing for the highest resolution at any volume level. The Diamond DAC ensures that your music is heard with precision, whether it's a whisper or a roar.

Unrivalled Soundstages, Analog Feel: The SPL Diamond DAC isn't just about hearing music; it's about feeling it. Experience unrivalled soundstages and an analog feel that redefines your perception of digital audio.

Diamond DAC Specifications

Analog & Outputs: XLR (balanced), RCA

Maximum output level                  32.5 dBu
(0 dBFS = max. +15 dBu)
Output impedance                       75 Ω
Frequency range (0 dBu)              10 Hz – 100 kHz
Crosstalk (0 dBu, 1 kHz)              -108 dB
THD & N (0 dBu, 1 kHz)               0.001 %
Noise (A-weighted)                     -102 dBu
Dynamic range                            134.5 dB
(0 dBFS = +15 dBu => 117,3 dB)

Digital Inputs, DAC768

AES/EBU (XLR), PCM sample rates                      44.1/48/88.2/96/176.4/192 kHz
Coaxial SPDIF (RCA), PCM sample rates              44.1/48/88.2/96/176.4/192 kHz
Optical SPDIF (Toslink F 06), PCM sample rates   44.1/48/88.2/96/ with Glass fibre <1m 176.4/192 kHz
USB (B), PCM sample rates                                 44.1/48/88.2/96/176.4/192/352.8/384/705.6/768 kHz
USB (B), DSD over PCM (DoP), sample rates      2.8 (DSD64), 5.6 (DSD128), 11.2 (DSD256) MHz
0 dBFS calibrated to                                           15 dBu
Internal Linear Power Supply with Shielded Toroidal Transformer
Operating voltage for analog audio                  +/- 60 V
Operating voltage for relays and LEDs              + 12 V

Mains Power Supply

Mains voltage              230 V AC / 50; 115 V AC / 60 Hz
(selectable, see fuse chamber)
Fuse for 230 V                                              T 0.5 A
Fuse for 115 V                                              T 1 A
Power consumption                                      max. 40 VA
Stand-by power consumption                      < 0.3 W'

Dimensions & Weight

W x H x D (width x height incl. feet x depth)
278 x 57 x 300 mm
Unit weight                                                     3.15 kg
Shipping weight (incl. packaging)                   5.35 kg



Reference: 0 dBu = 0.775V.

All specifications are subject to change without notice.
